🖥️ Hardware
Nodes
All nodes run an Intel N100 CPU, which is very low-powered; easy to purchase; and has Intel Quicksync for GPU tasks like Plex video encoding and Frigate ML object detection.
| Name | IP Address | Device | CPU | RAM | nvme SSD | SSD2 | Networking | Use | Purchased |
|---|---|---|---|---|---|---|---|---|---|
| pve | 192.168.86.16 | Beelink Mini-S12 Pro | Intel N100 | 16gb | 512gb | 1000gb | 1x 1gbps | Primary | 30/04/24 |
| pve2 | 192.168.86.200 | TRIGKEY Green G5 | Intel N100 | 16gb | 512gb | 2000gb | 2x 2.5gbps | Backup | 29/10/24 |
| nas | 192.168.86.201 | MW-N100-NAS | Intel N100 | 32gb | 1024gb | 2000gb | 2x 2.5gbps, 1x 10gbps | NAS | 26/12/24 |
| remote | Tailscale | -- | Intel Core i5-4570 | 16gb | 128gb (SATA) | -- | 1gbps | NAS | a long time ago |

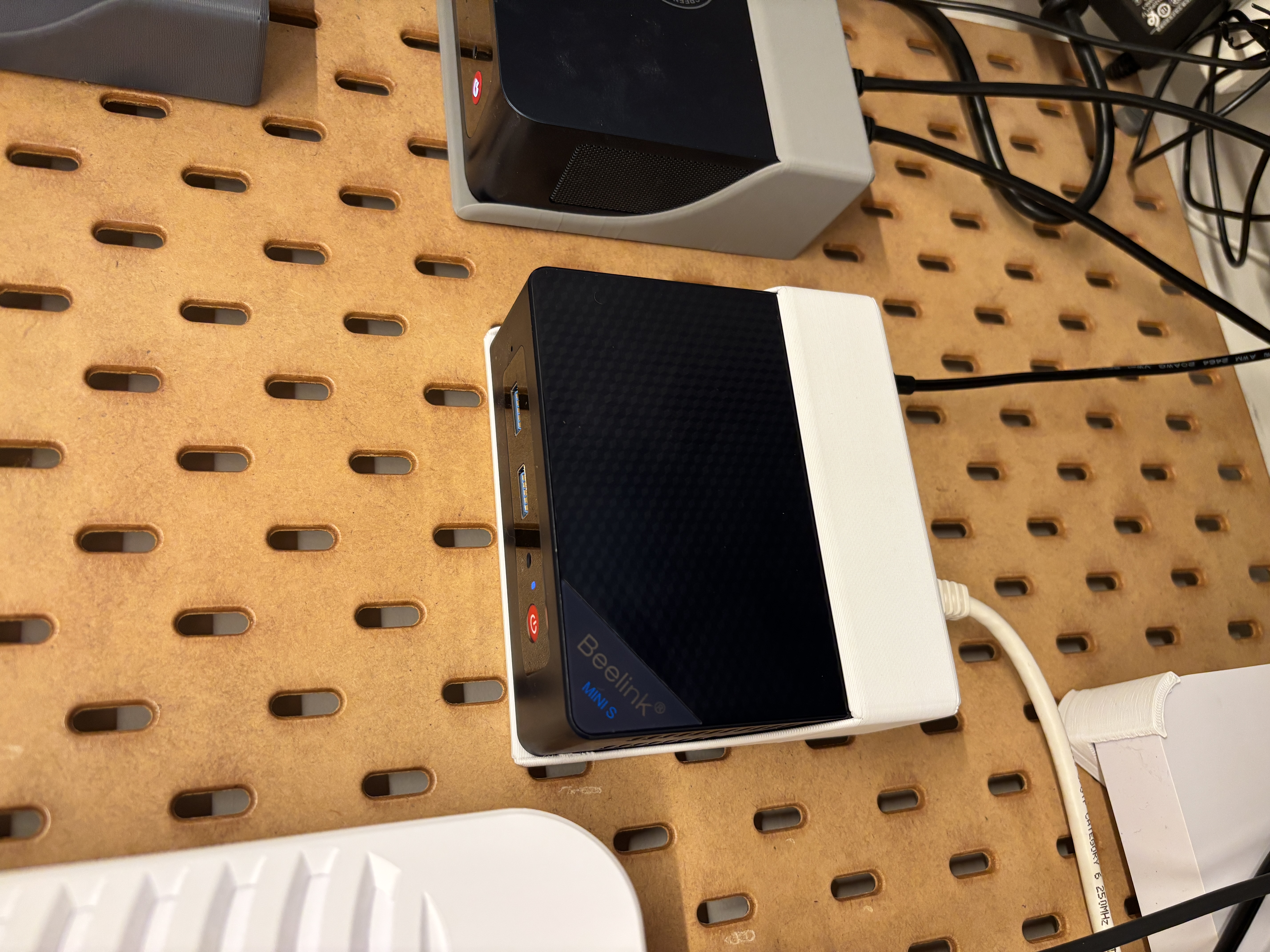

Beelink Mini-S12 Pro

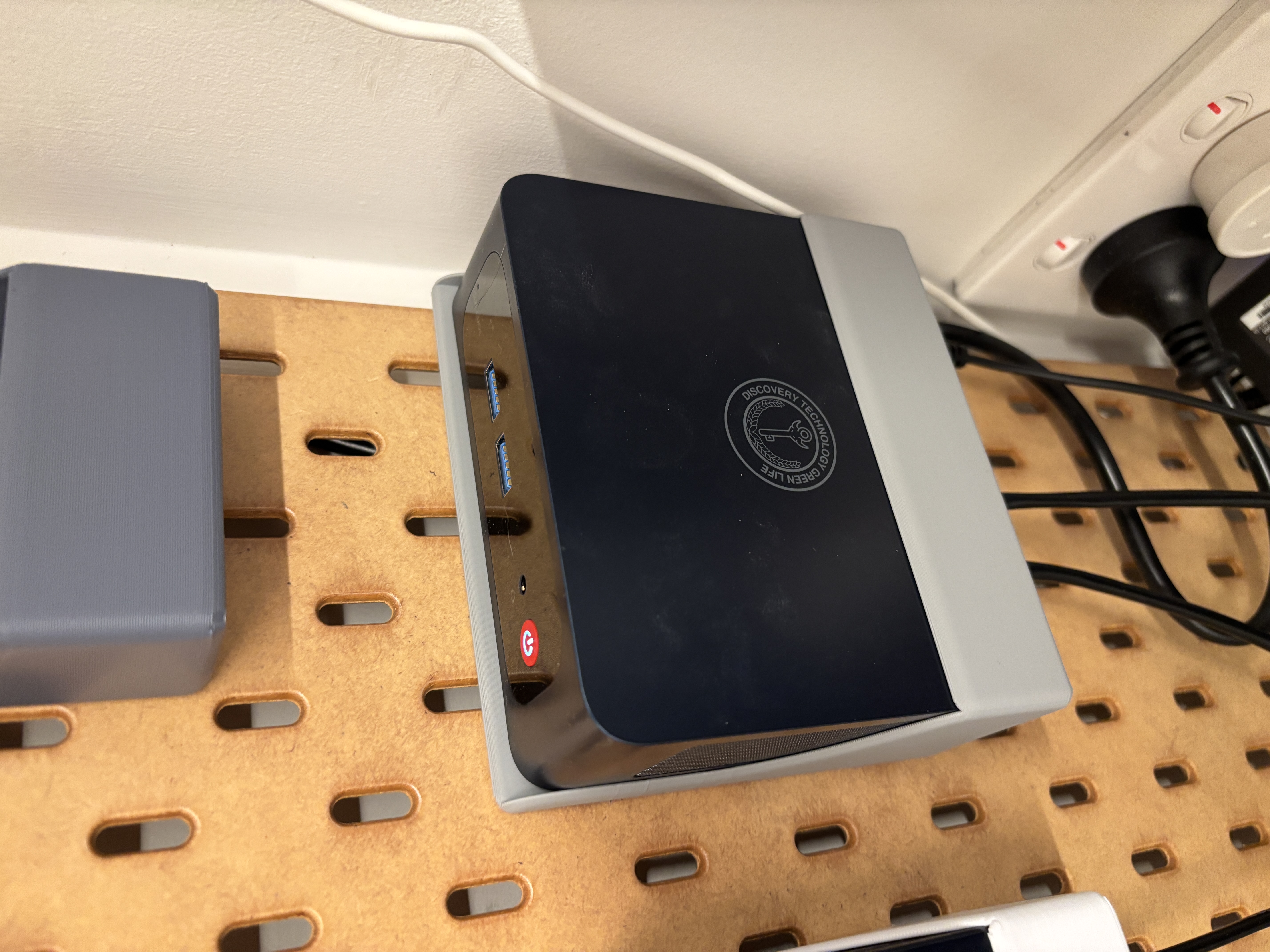

TRIGKEY Green G5
NAS
NAS
- 3x 16TB drive
- 1x 18TB drive
- 2x 2tb SSDs
- 1tb nvme drive (BOOT)
PCIE passthroughs
- 06:00 - SATA controller for 5x of the ports
- 00:17 - Intel SATA controller for 1x of the ports (currently the right-most 16tb HDD)
- 05:00 - Aquantia 10g controller
Networking
| Type | Model | Purpose |
|---|---|---|
| Router | Unifi UCG Ultra | |
| Switch | Unifi Enterprise-8-POE | POE + 2.5gbps |
| Switch | Unifi Flex Mini | Entertainment Unit |
| Wifi AP | Unifi U7 Pro | Living Room |
| Wifi AP | Unifi U6 Lite | Basement |
TODO
- Raspberry Pi 4B?
- Cool idea: https://www.reddit.com/r/homeassistant/comments/1i9esrn/docking_tablet_remote/
